VRayBmpFilter Overview

The VRayBmpFilter texture map is useful for displacement maps, created in external programs (like ZBrush) where exact placement of the map is very important. The VRayBmpFilter map produces a smooth map by interpolating the bitmap pixels, but without applying any additional blurring or smoothing. This is not possible with the default Bitmap texture of 3ds Max.

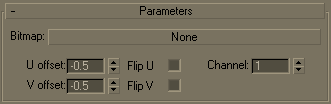

Parameters

Bitmap - this is the bitmap file. This can be in any format supported by 3ds Max.

U offset - allows you to position the bitmap more precisely; the value is in pixels of the bitmap.

V offset - allows you to position the bitmap more precisely; the value is in pixels of the bitmap.

Flip U - flips the bitmap in the horizontal direction.

Flip V - flips the bitmap in the vertical direction.

Channel - mapping channel from which the UV coordinates are derived.
